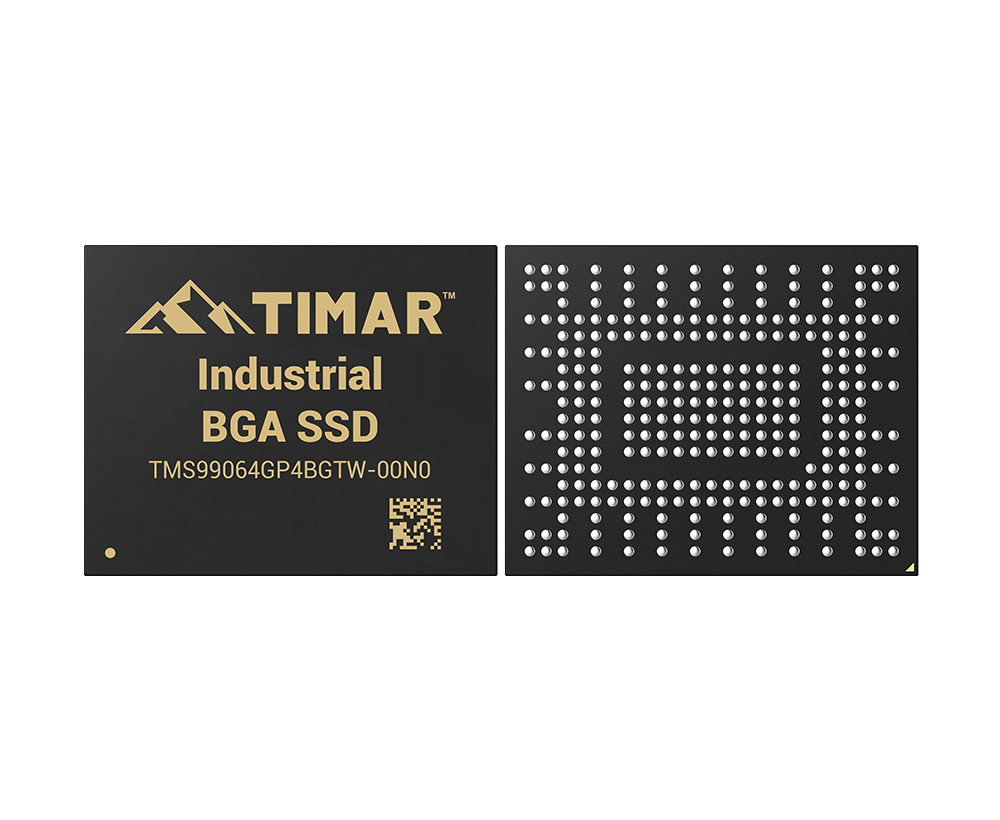

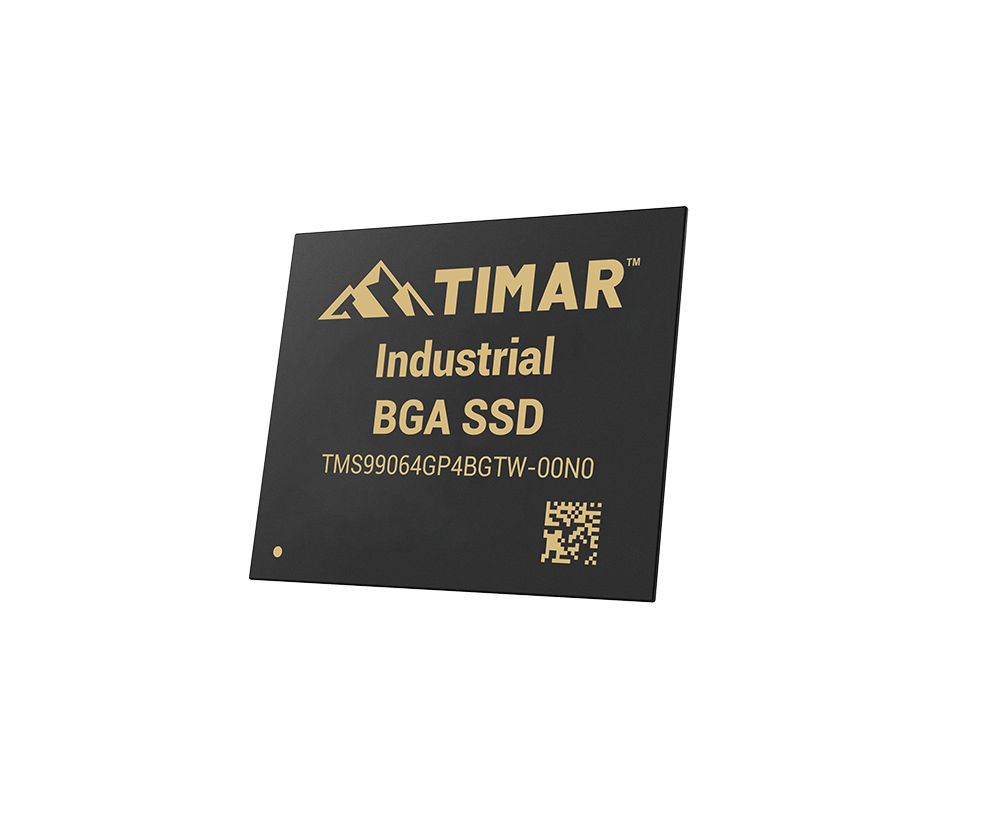

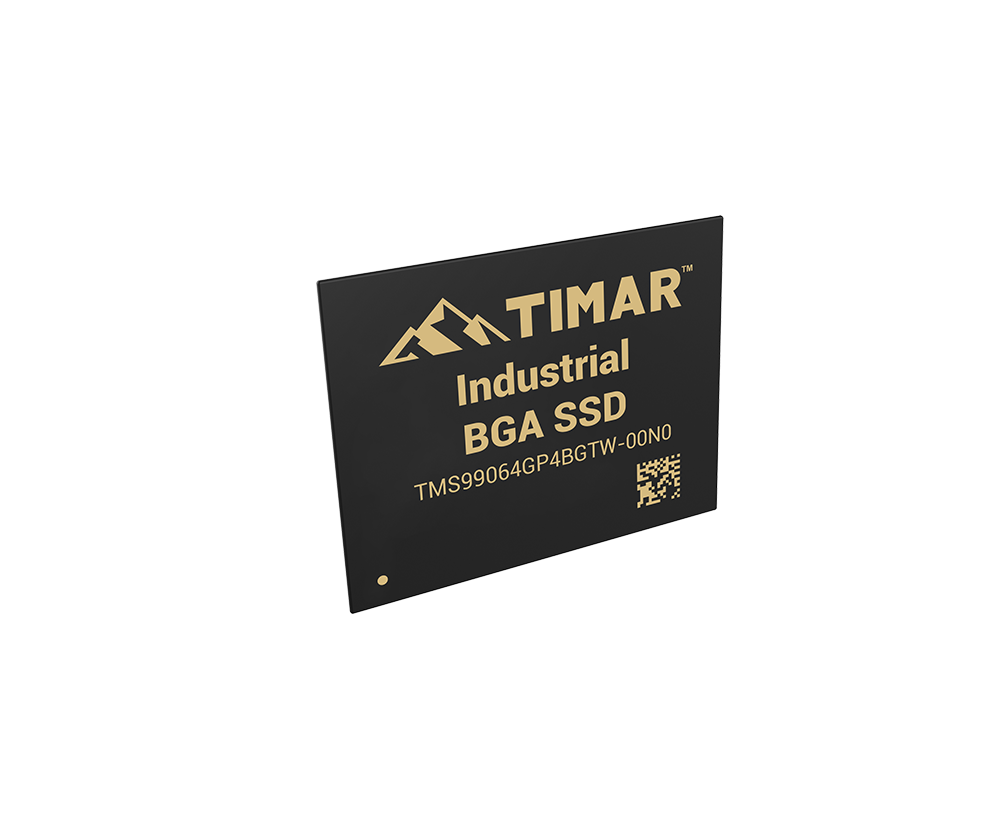

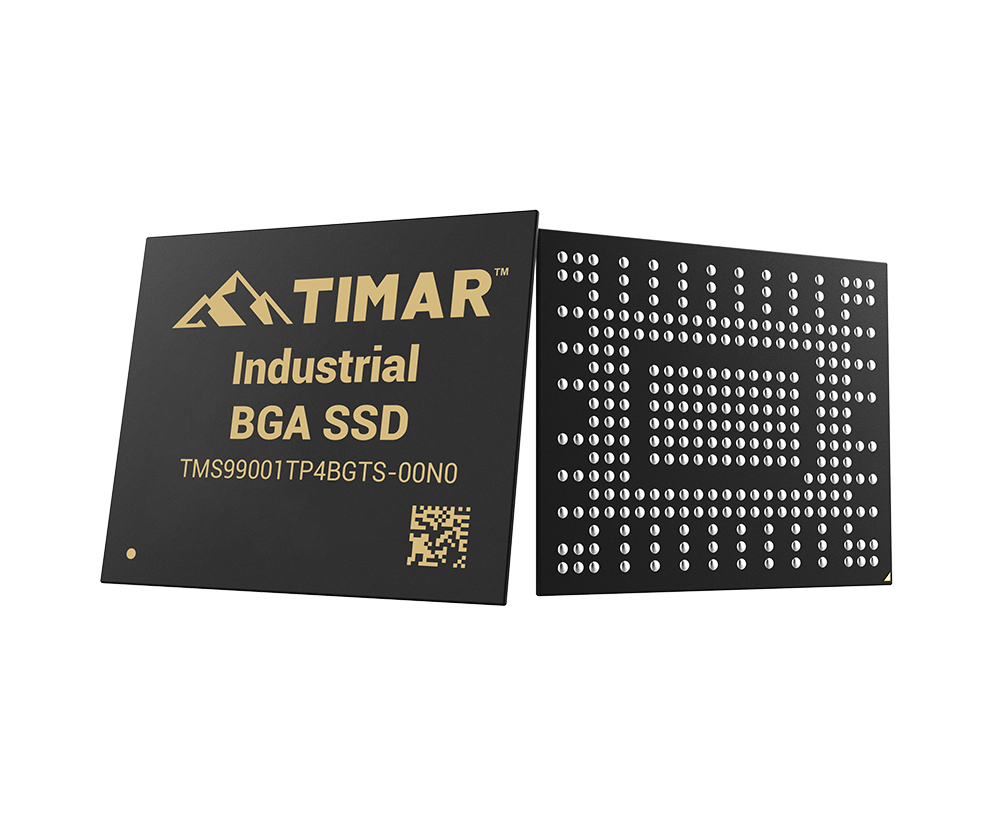

TIMAR A99M6 BGA PCIe(Gen4*4) SSD
Utilizes a fully domestic solution (domestic industrial-grade controller + domestic original high-quality 3D TLC NAND FLASH), ensuring product stability and durability. Supports the PCIe 4.0 standard protocol, with 4 channels and backward compatibility, delivering read speeds of up to 7400⁺MB/s. Features shock and vibration resistance, supports a maximum operating temperature range of -40°C to 85°C, and meets the operational requirements in

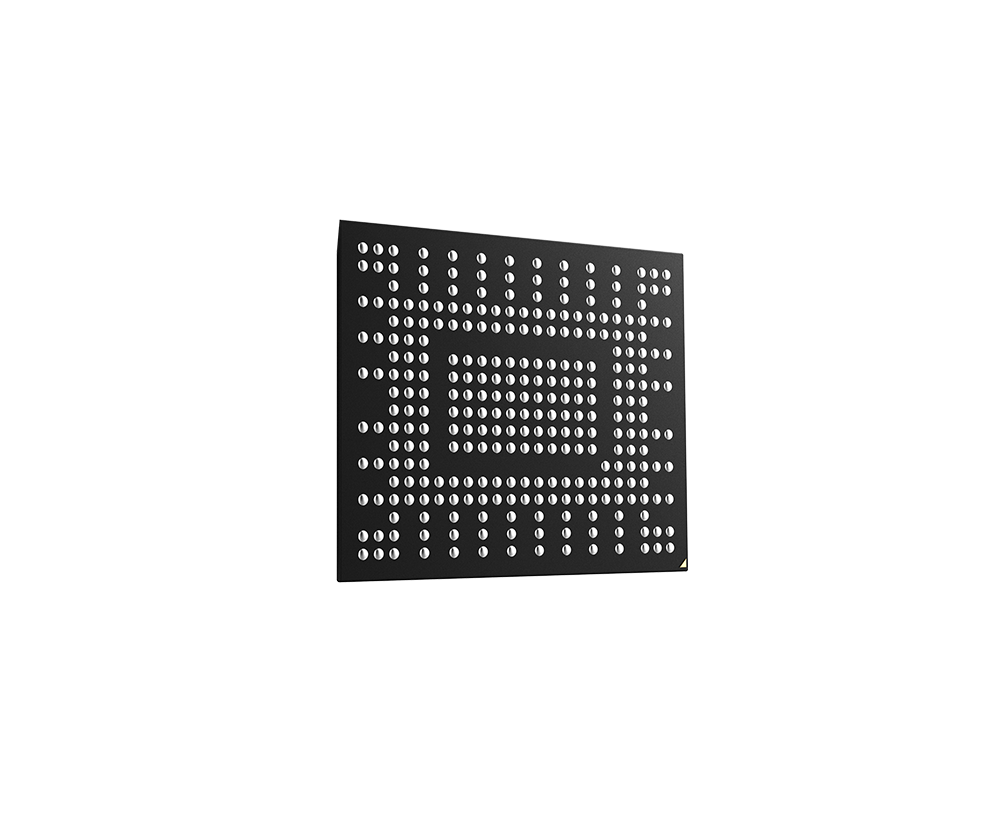

harsh industrial environments. Employs BGA packaging with a compact size, making it suitable for equipment with strict spatial constraints.
Features
1. Industrial-grade controller, original high-quality 3D TLC NAND Flash resources, offering high reliability and excellent stability.
2. Supports -40°C to 85°C, meeting the operational requirements in harsh industrial environments.
3. Multi-point temperature control technology prevents the SSD from overheating, ensuring safe and stable long-term operation.
4. LDPC error correction technology, with correction capability 3-5 times that of traditional BCH error correction, safeguards data security.
5. Supports the Chinese national cryptographic standard SM4 and TCG Opal encryption methods, meeting data privacy and security requirements.
6. Capacity coverage from 64GB to 1TB, meeting higher data storage demands.
7. BGA package, compact size, suitable for equipment with stringent requirements on component dimensions.
Technology Application
Wide Temperature
A range of product options with different operating temperature ranges are available, allowing the storage devices to operate stably within temperatures of -25℃ to 85℃ / -40℃ to 85℃.
AES/SM4 Encryption Technology
AES/SM4 encryption technology is integrated into the hardware architecture and widely implemented in industrial-grade SSD products.
TCG Opal 2.0
TCG Opal is a security management standard for storage devices applied in PCs and notebooks. The SSD supports compliance with the TCG Opal 2.0 standard, providing high-level data encryption and security management functions.
Thermal Throttling
Industrial SSDs are equipped with built-in high-precision temperature sensors, combined with firmware settings, to achieve phased throttling. The independent firmware within the control chip enables the controller to monitor the SSD's temperature data in real time, perform dynamic temperature adjustments based on data reliability, and transmit the data back in real time.
Garbage Collection (GC)
The Garbage Collection (GC) mechanism is used to clean up invalid data in SSDs, freeing up space for new data writes. An excellent GC algorithm or mechanism can effectively enhance both the lifespan and steady-state performance of the SSD.
TRIM
A function used to optimize the SSD garbage collection process by informing the SSD in advance which blocks are no longer needed, thereby speeding up space release, reducing WAF, and extending the SSD's lifespan.
pSLC Partition
Supports creating a logical partition for storing important data. Users can specify a special LBA range via protocol commands, and data subsequently written to this LBA range will always be stored in SLC mode, ensuring high reliability.
Product Specification
| PN | TMS99064GP4BGTW-00N0 | TMS99128GP4BGTW-00N0 | TMS99256GP4BGTW-00N0 | TMS99512GP4BGTW-00N0 | TMS99001TP4BGTW-00N0 |
| Modle Name | TIMAR A99M6 64GB SSD | TIMAR A99M6 128GB SSD | TIMAR A99M6 256GB SSD | TIMAR A99M6 512GB SSD | TIMAR A99M6 1TB SSD |
| Interface | PCIe Gen4*4 | PCIe Gen4*4 | PCIe Gen4*4 | PCIe Gen4*4 | PCIe Gen4*4 |
| Flash Type | 3D TLC | 3D TLC | 3D TLC | 3D TLC | 3D TLC |
| Capacity | 64GB | 128GB | 256GB | 512GB | 1TB |
| Operation Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
| Sequential R/W(MB, max.) | 1700/650 | 3000/1500 | 6600/3300 | 7000/6400 | 7000/6400 |
| Max. Power Consumption R/W(mW, max.) | 1650/1420 | 2040/1760 | 3150/2510 | 3370/3680 | 3440/3780 |
| Dimension (WxLxH/mm) | 16*20*1.25 | 16*20*1.25 | 16*20*1.25 | 16*20*1.25 | 16*20*1.33 |
| Max. Channels | 1 | 2 | 4 | 4 | 4 |
| ATA Security | YES | YES | YES | YES | YES |
| H/S Write Protect | Customized Support | Customized Support | Customized Support | Customized Support | Customized Support |
| S.M.A.R.T. | YES | YES | YES | YES | YES |
| Thermal Sensor | YES | YES | YES | YES | YES |
| Vibration | 10~2,000Hz, 20G | 10~2,000Hz, 20G | 10~2,000Hz, 20G | 10~2,000Hz, 20G | 10~2,000Hz, 20G |
| Shock | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave |
| MTBF(hours) | 3000000 | 3000000 | 3000000 | 3000000 | 3000000 |
| Storage Temperature | -55~95℃ | -55~95℃ | -55~95℃ | -55~95℃ | -55~95℃ |
