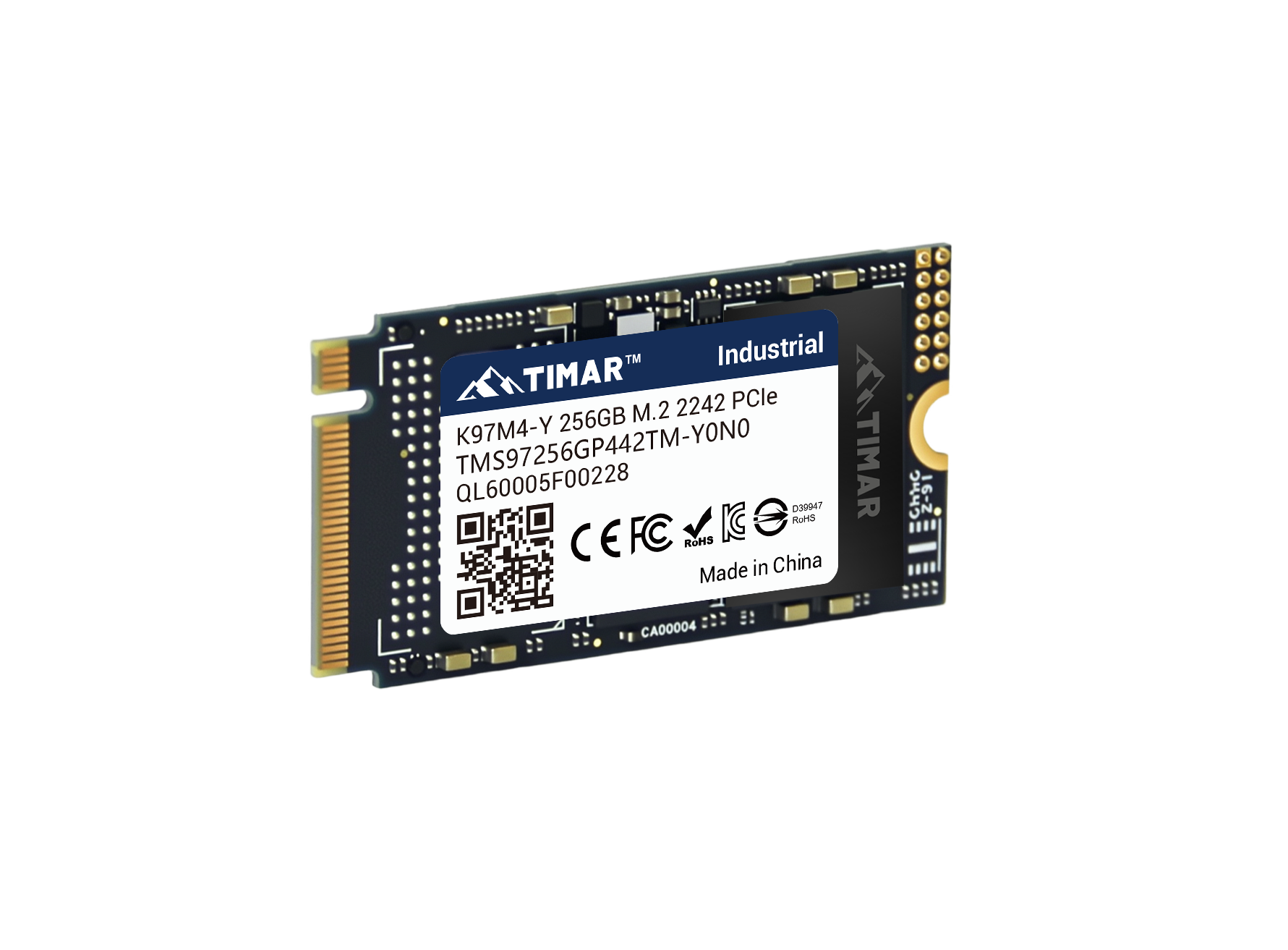

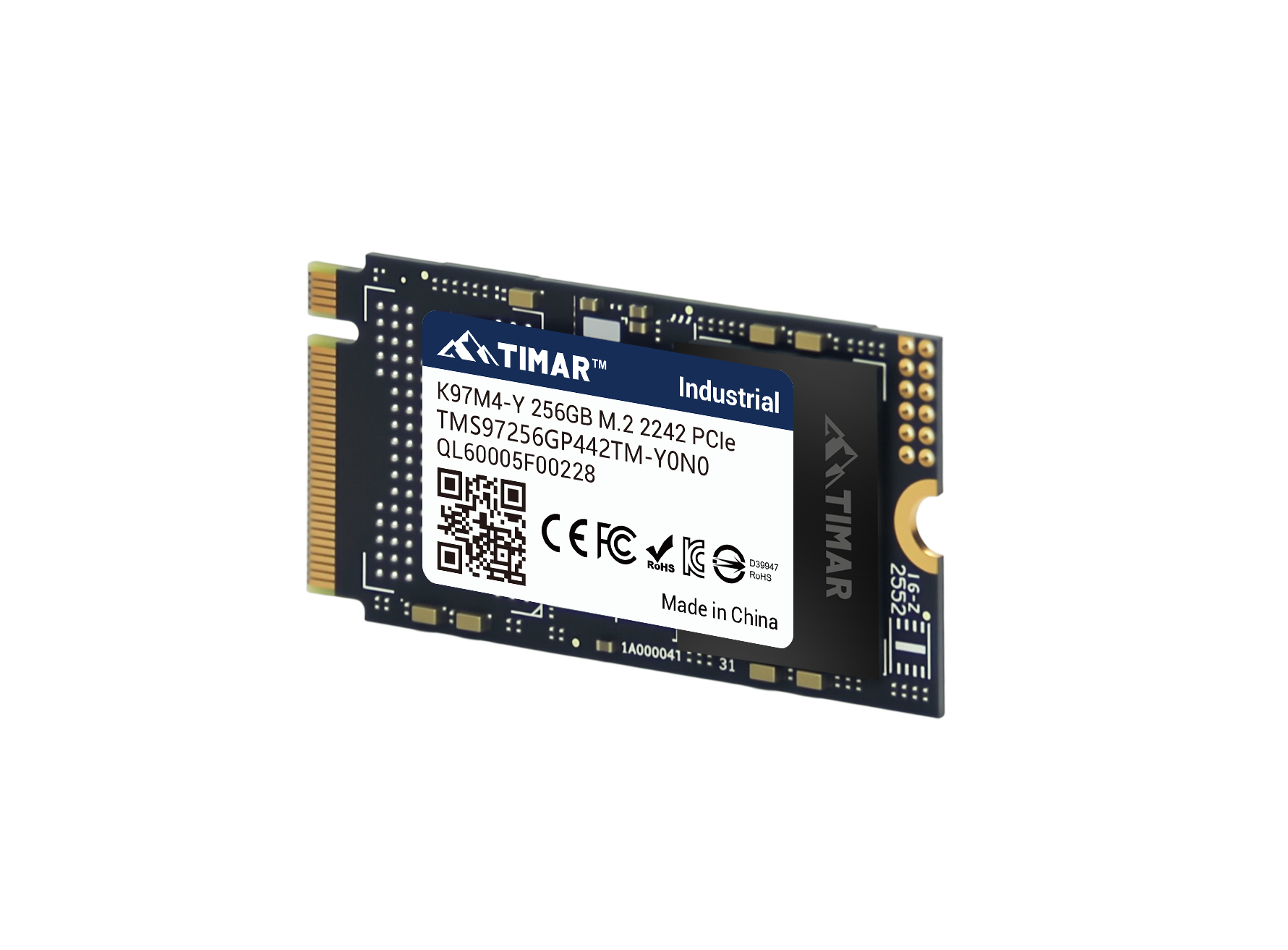

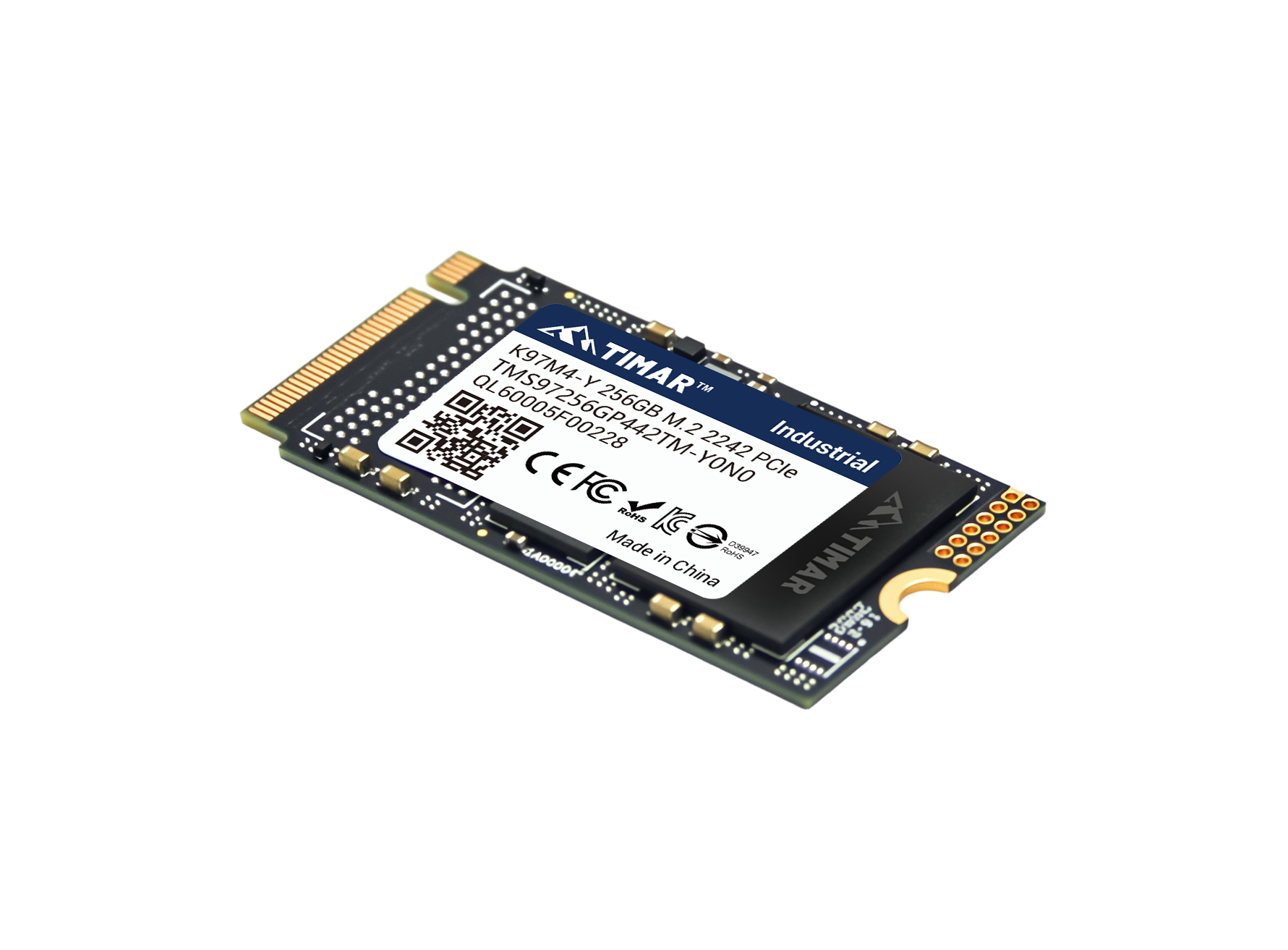

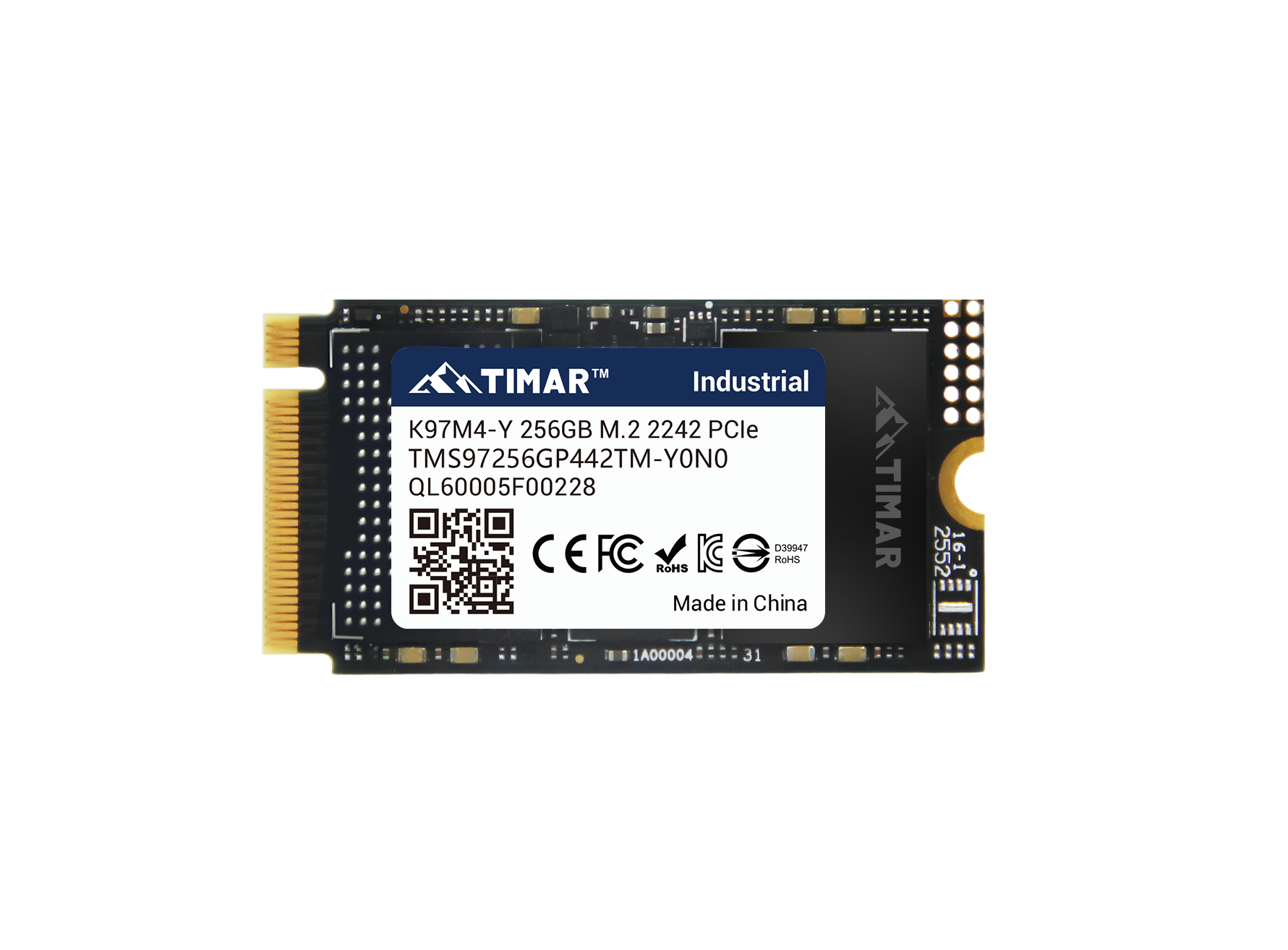

TIMAR K97M4-Y M.2 2242 PCIe(Gen4*4，7.88GB/s) SSD
Utilizes a fully domestic solution domestic original high-quality 3D NAND FLASH, ensuring product stability and durability. Supports the PCIe 4.0 standard protocol, with 4 channels and backward compatibility, achieving read speeds of up to 7000MB/s. Features shock and vibration resistance, employs anti-sulfuration technology, and supports a maximum operating temperature range of -25°C to 85°C, meeting the operational requirements in harsh industrial environments. Incorporates PLP technology to ensure data integrity and system stability.
Features
1. Industrial-grade controller and anti-sulfuration electronic components, original high-quality 3D TLC NAND Flash resources, offering high reliability and excellent stability.
2. Supports -25°C to 85°C, meeting the operational requirements in harsh industrial environments.
3. Supports hardware PLP (Power Loss Protection), providing temporary power during outages to ensure data integrity and system reliability.
4. Multi-point temperature control technology, with external temperature sensors, prevents the SSD from overheating, ensuring safe and stable long-term operation.
5. LDPC error correction technology, with correction capability 3-5 times that of traditional BCH error correction, safeguards data security.
6. Surge protection design, a preemptive power protection mechanism specifically designed for environments with unstable power supplies.
7. Supports the Chinese national cryptographic standard SM4 and TCG Opal encryption methods, meeting data privacy and security requirements.
8. Capacity coverage from 256GB to 2TB, meeting higher data storage demands.
Technology Application
Protective Coating
We provide customized protective coating services, utilizing precise formulations and processes to build a comprehensive protective barrier for your products:
1. Resists moisture, dust, and harsh environmental erosion.
2. Effectively prevents damage from chemical contaminants and corrosive substances.
3. Offers personalized protection solutions tailored to product characteristics and usage scenarios.
Dispensing
By applying spot gluing around critical components and reserving a gap to serve as a buffer for future thermal expansion and contraction, industrial control products achieve exceptional reliability under high temperature, high pressure, high G-forces, and high fatigue cycles.
Anti-Sulfurated
Targeted anti-sulfuration treatment is applied to components on the module that may undergo sulfuration and affect functionality, to ensure proper operation of the module.
30μ”
30μ” gold fingers feature a denser structure and enhanced durability, delivering a longer service life in scenarios involving repeated insertion and removal cycles.
Wide Temperature
A range of product options with different operating temperature ranges are available, allowing the storage devices to operate stably within temperatures of -25℃ to 85℃ / -40℃ to 85℃.
AES/SM4 Encryption Technology
AES/SM4 encryption technology is integrated into the hardware architecture and widely implemented in industrial-grade SSD products.
Power Loss Protection (PLP)
This technology protects SSD data integrity during power interruptions, minimizing the risk of data corruption and ensuring data integrity in the event of a power outage.
TCG Opal 2.0
TCG Opal is a security management standard for storage devices applied in PCs and notebooks. The SSD supports compliance with the TCG Opal 2.0 standard, providing high-level data encryption and security management functions.
Power Shield
Power protection is a preset feature across the full standard series of SSD products. When the external voltage environment fluctuates, the voltage detection circuit (VDT) inside the controller automatically activates the power protection function. This causes the SSD controller to halt acceptance of new write commands, thereby preventing damage to the internal firmware and data stored in the flash memory.
Thermal Throttling
Industrial SSD are equipped with built-in high-precision temperature sensors, combined with firmware settings, to achieve phased throttling. The independent firmware within the control chip enables the controller to monitor the SSD temperature data in real time, perform dynamic temperature adjustments based on data reliability, and transmit the data back in real time.
Garbage Collection (GC)
The Garbage Collection (GC) mechanism is used to clean up invalid data in SSD, freeing up space for new data writes. An excellent GC algorithm or mechanism can effectively enhance both the lifespan and steady-state performance of the SSD.
pSLC
pSLC technology is a technique that emulates MLC or multi-level cell flash memory as SLC (single-level cell). Through this technology, TLC/MLC flash memory can achieve a lifespan, reliability, and performance close to that of SLC flash memory.
TRIM
A function used to optimize the SSD garbage collection process by informing the SSD in advance which blocks are no longer needed, thereby speeding up space release, reducing WAF, and extending the SSD's lifespan.
pSLC Partition
Supports creating a logical partition for storing important data. Users can specify a special LBA range via protocol commands, and data subsequently written to this LBA range will always be stored in SLC mode, ensuring high reliability.
In-drive RAID
Within the SSD, RAID is implemented by leveraging the physical structure and characteristics of each NAND flash die to address scenarios where data reliability is compromised due to various factors, thereby safeguarding user data.
Self-Monitoring, Analysis, and Reporting Technology
SMART is a core mechanism for monitoring the health status of SSDs by continuously tracking physical parameters and performance metrics, using algorithms to assess device health and provide early warnings of potential failures. It covers both SATA and NVMe protocols, enabling fault warning and lifespan prediction through multi-dimensional sensor data and algorithmic evaluation.
Product Specification
| PN | TMS97256GP442TM-Y0N0 | TMS97512GP442TM-Y0N0 | TMS97001TP442TM-Y0N0 | TMS97002TP442TM-Y0N0 |
| Module Name | TIMAR K97M4-Y 256GB SSD | TIMAR K97M4-Y 512GB SSD | TIMAR K97M4-Y 1TB SSD | TIMAR K97M4-Y 2TB SSD |
| Interface | PCIe Gen4*4 | PCIe Gen4*4 | PCIe Gen4*4 | PCIe Gen4*4 |
| Flash Type | 3D TLC | 3D TLC | 3D TLC | 3D TLC |
| Capacity | 256GB | 512GB | 1TB | 2TB |
| Operation Temperature | -25~85℃ | -25~85℃ | -25~85℃ | -25~85℃ |
| Sequential R/W(MB, max.) | 3100/1100 | 6500/2400 | 6500/4800 | 7100/6500 |
| Max. Power Consumption R/W(mW, max.) | 2800/2100 | 4300/2700 | 4700/4200 | 5200/5500 |
| Dimension (WxLxH/mm) | 22*80*2.1 | 22*80*2.1 | 22*80*2.1 | 22*80*2.1 |
| Max. Channels | 2 | 4 | 4 | 4 |
| ATA Security | YES | YES | YES | YES |
| H/S Write Protect | Customized Support | Customized Support | Customized Support | Customized Support |
| S.M.A.R.T. | YES | YES | YES | YES |
| Thermal Sensor | YES | YES | YES | YES |
| Vibration | 10~2,000Hz, 20G | 10~2,000Hz, 20G | 10~2,000Hz, 20G | 10~2,000Hz, 20G |
| Shock | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave | 1,500G, duration 0.5ms, Half Sine Wave |
| MTBF(hours) | 3000000 | 3000000 | 3000000 | 3000000 |
| Storage Temperature | -55~95℃ | -55~95℃ | -55~95℃ | -55~95℃ |
