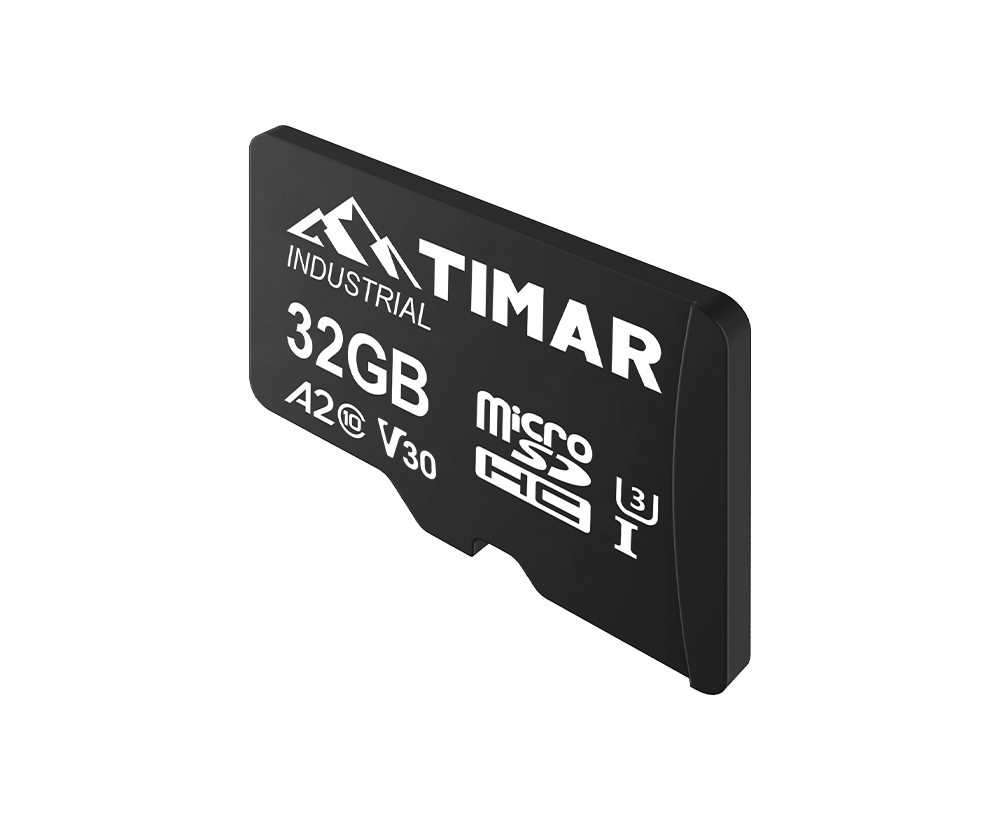

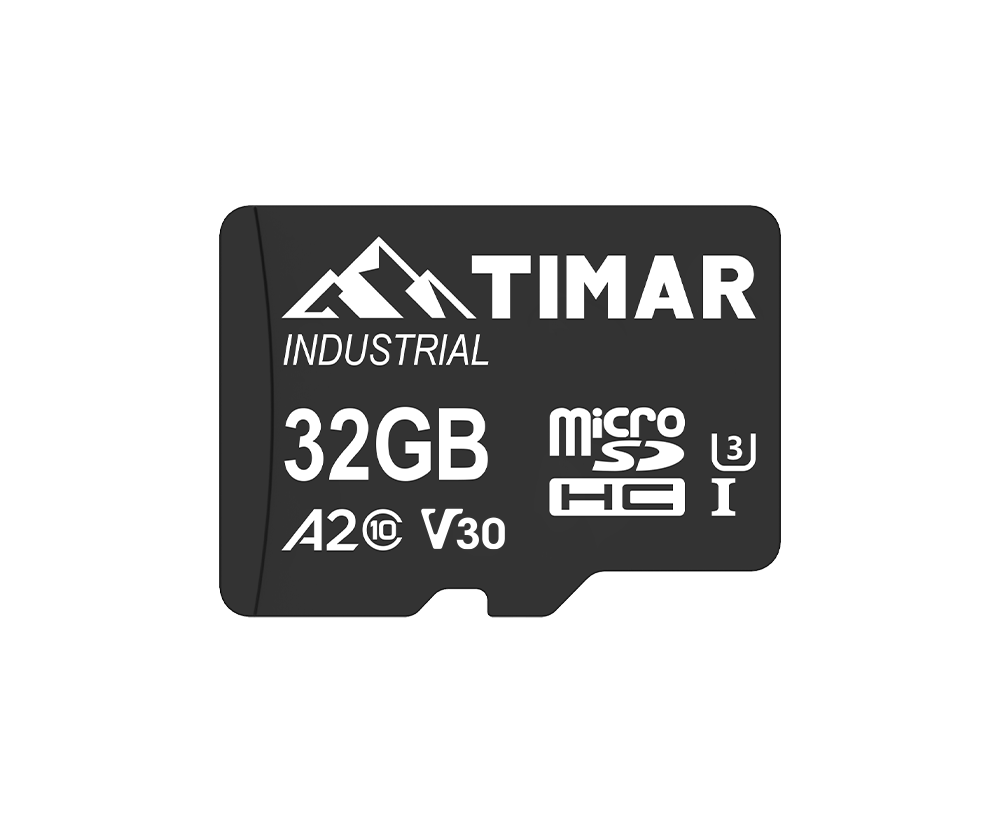

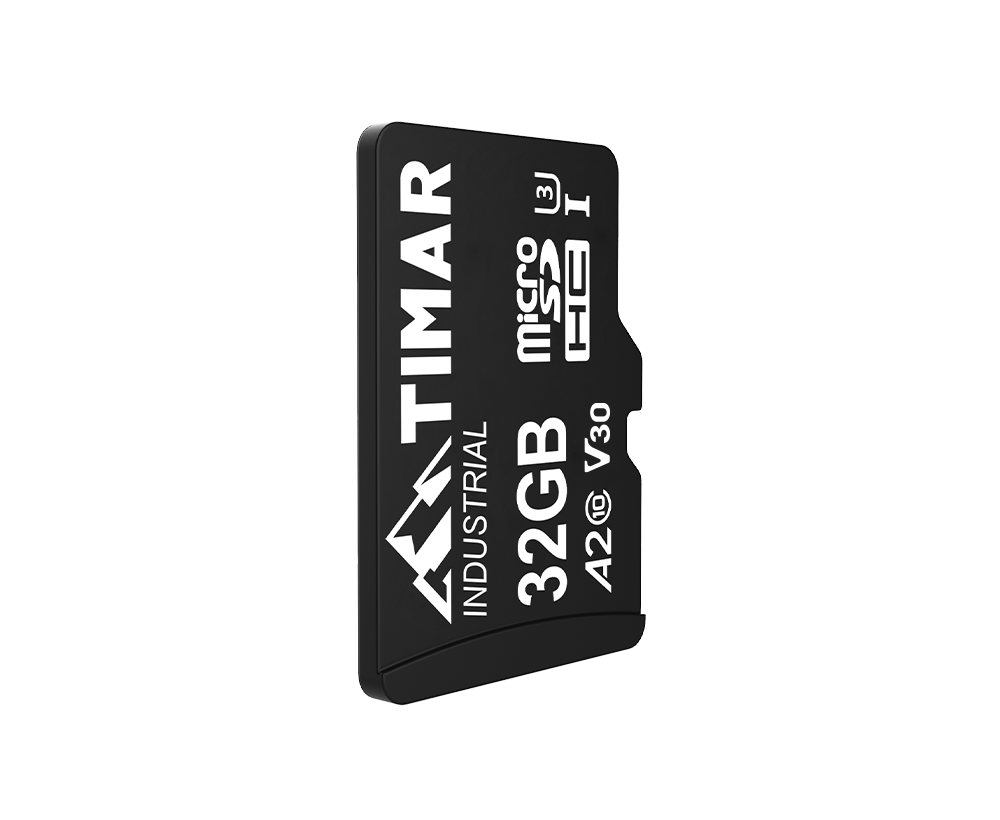

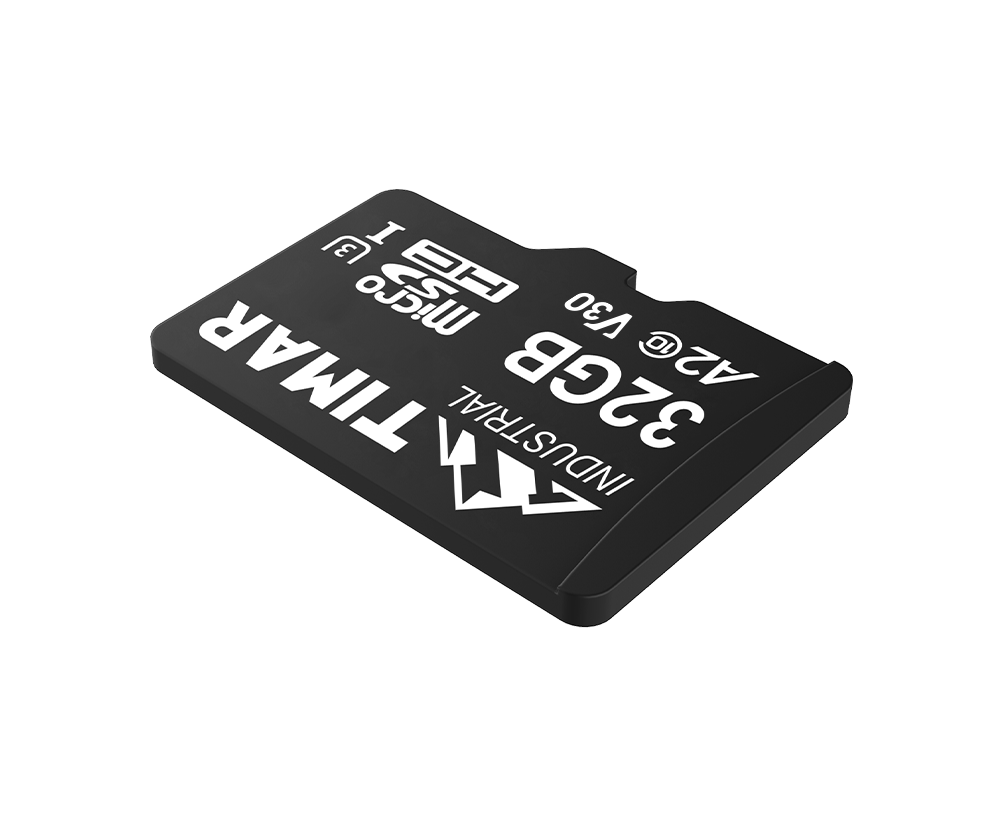

TIMAR TFMV30 microSDHC UHS-I
High endurance and high reliability, ensuring stable operation in harsh environments. Supports 24/7 uninterrupted video recording and multi-channel surveillance video recording. Intelligent GC algorithm optimization ensures stability during prolonged data recording. Rigorous production processes comprehensively enhance product quality and reliability.
Features
1. Engineered for high endurance and high reliability, tailored for industrial-grade application markets.
2. Utilizes proprietary GC (Garbage Collection) technology to minimize the performance impact of GC operations on SD/Micro SD cards, enhancing performance consistency and preventing frame drops or recording interruptions caused by failure to meet bitrate requirements.
3. Intelligent GC algorithm optimization mechanism ensures sustained performance during prolonged random read/write operations.
Technology Application
Wide Temperature
A range of product options with different operating temperature ranges are available, allowing the storage devices to operate stably within temperatures of -25℃ to 85℃ / -40℃ to 85℃.
AES/SM4 Encryption Technology
AES/SM4 encryption technology is integrated into the hardware architecture and widely implemented in industrial-grade SSD products.
Garbage Collection (GC)
The Garbage Collection (GC) mechanism is used to clean up invalid data in SSDs, freeing up space for new data writes. An excellent GC algorithm or mechanism can effectively enhance both the lifespan and steady-state performance of the SSD.
pSLC
pSLC technology is a technique that emulates MLC or multi-level cell flash memory as SLC (single-level cell). Through this technology, TLC/MLC flash memory can achieve a lifespan, reliability, and performance close to that of SLC flash memory.
TRIM
A function used to optimize the SSD garbage collection process by informing the SSD in advance which blocks are no longer needed, thereby speeding up space release, reducing WAF, and extending the SSD's lifespan.
pSLC Partition
Supports creating a logical partition for storing important data. Users can specify a special LBA range via protocol commands, and data subsequently written to this LBA range will always be stored in SLC mode, ensuring high reliability.
Product Specification
| PN | TMMSDF032GV30TM-E0N0 |
| Module Name | TIMAR TFMV30 32GB TF |
| Interface | UHS-I/SD 3.0 |
| Flash Type | 3D TLC(OP) |
| Capacity | 32GB |
| Speed Grade | C10 U3 V30 A2 |
| Operation Temperature | -25~85℃ |
| Transfer Speed (MB/s) | Up to 100 |
| TYPE | microSDHC |
| P/E CYCLES | 6000 |
| Dimension (WxLxH/mm) | 11*15*1 |
| Power Loss Protection | YES |
| S.M.A.R.T. | YES |
| Storage Temperature | -40~85℃ |
